Suborbital Transit with Hovering
The mathematically optimal solution for the lowest-fuel trajectory to drive a rocket from one point on a planetary body to another (in vacuum) is a question that is easily settled. A simple ballistic trajectory (an elliptical orbit) that goes from point A to point B with the apogee in the center of the two will do the job.
In the real world, however, we maximize profits, not propellant.
Fully Ballistic (and Deadly) Trips
For the case of Earth point-to-point passenger transit, the optimal solution has a tiny inconvenience that it would kill all the passengers on board for most randomly selected trips. Reentry is not a gentle process in the best of circumstances, and the best of circumstances requires entering the atmosphere at a low angle. The ballistic trajectory matches with this if point A and point B are 180 degrees apart. Shorter distances can better optimize fuel use by using a higher apogee, but this makes for a high reentry angle, which is deadly.
This fascinated me as a criticism of SpaceX’s idea for commercial passenger transport. Some details are here:
g-forces of suborbital versus orbital passenger travel
Actually considering an acceleration of 3G you would be less than 8 minutes to accelerate,. On more a more realistic…
Practically, no one would ever do this, of course. That left me with a nasty nagging question — what kind of trajectories would it be reasonable for us to assume commercial suborbital travel would take? Would any trip require reaching orbital velocity? That seems absurd. For proof by absurdity, surely you do not need to reach orbital velocity to fly (on a rocket) from your current location to the next room over. No, you would accept some additional gravity drag and hover carefully.
Logically, some cross-over must happen, and it’s non-obvious whether long-distance trips would benefit from something like mid-trip upwards thrust (so that it need not reach such a high velocity). So I set about to find out.
Semi-Orbital with Hovering
So the scheme goes like this:
The trip still goes in an arc, just like you would if taking it at full orbital velocity. However, you have some smaller engine that maintains a continuous upwards thrust through the stages of flight that would have otherwise been zero-gravity coasting. The general constraints are outlined below. The first constraint is that the coasting phase must maintain a constant altitude, so the upward thrust plus the rotational acceleration must balance gravity. The second constraint is that the trip Delta V value must be at a minimum.

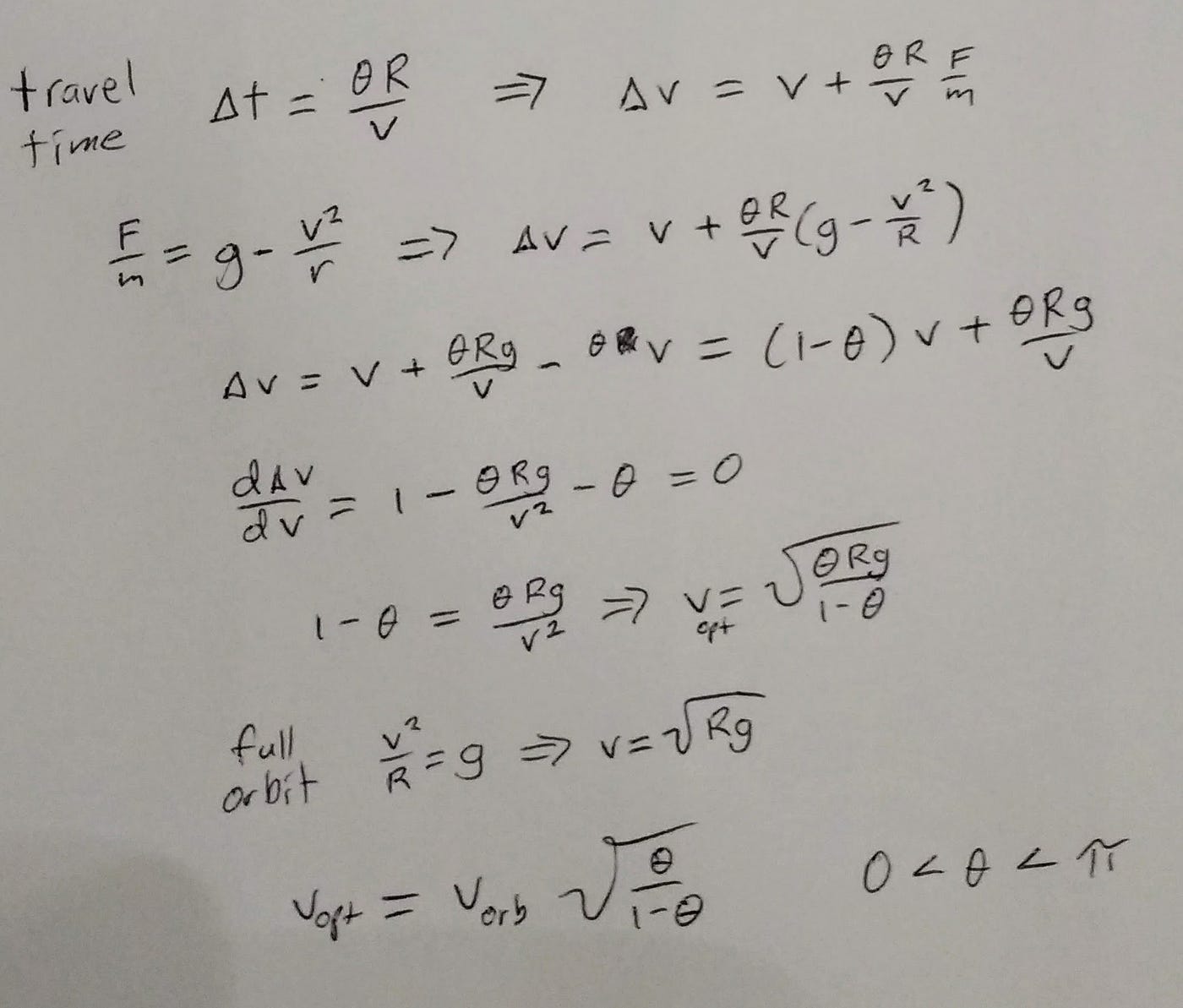

This is pretty much enough information to churn through the equations, and I did that here. I’m taking the variable theta to be in radians.
This is a strange strange outcome. If theta is 1/2 you find that it’s a wash — there is no longer any benefit to the scheme at distances further than this.
Here I generated a plot, and plugged in some actual numbers.
orbital-hop-hover - suborbital flights with a slight hovering component
What the heck does this mean for distances greater than the maximum here? In the math above, I took the derivative as a means of finding a local minimum for Delta V. Above theta=1.0, it would appear that the slope of the function just means that it costs more fuel for any amount of hovering.
For some practicality, a value of 1.0 means 1.0 radians, measured as an angle about the center of the Earth. In terms of surface distance, this is about 1981 miles. In terms of distance from New York, NY, it is the following:
Bottom line: mid-filght hovering has a benefit for trips from New York, NY to all trips inside of the blue circle, but the benefit mostly matters for trips to places closest to the center of the circle.
If you go from New York to LA, then the most optimal way to get there with a rocket is to just achieve orbital velocity, assuming you have ruled out the ballistic trajectory option. Not so for New York to Dallas. Who knew?
Another Option — Propulsive Slowing
This still isn’t the full picture. You could still use the engines to adjust your trajectory at the point of reentering the atmosphere. There’s some chance that this could dominate as an optimal solution, while still keeping g-forces within tolerable ranges.
That option strikes me as much more mathematically demanding.
